Inverter
PaiduSolar 3000W Off Grid Power Inverter 24V DC To 110V 120V AC Pure Sine Wave Converter 60HZ
Product Information
- No Load Current Draw: 1A
- Efficiency:90%
- AC output: 110V~120V AC
- Regulation:3%
- Frequency: 60Hz
- Socket:US standard
- Low Voltage Alarm:20V-21V
- Low Voltage Shut Down: 19V-20V
- Over Load: shut off, recover manually
- Over Voltage Shut Down:30.5V
- Over Thermal: Shut Off Output Automatically
- Manufacturer: PAIDU
- Country of Origin: China
Feature
1. 3000W continuous 6000W peak true pure sine wave solar power inverter, as good as grid power, power backup for home power supply.

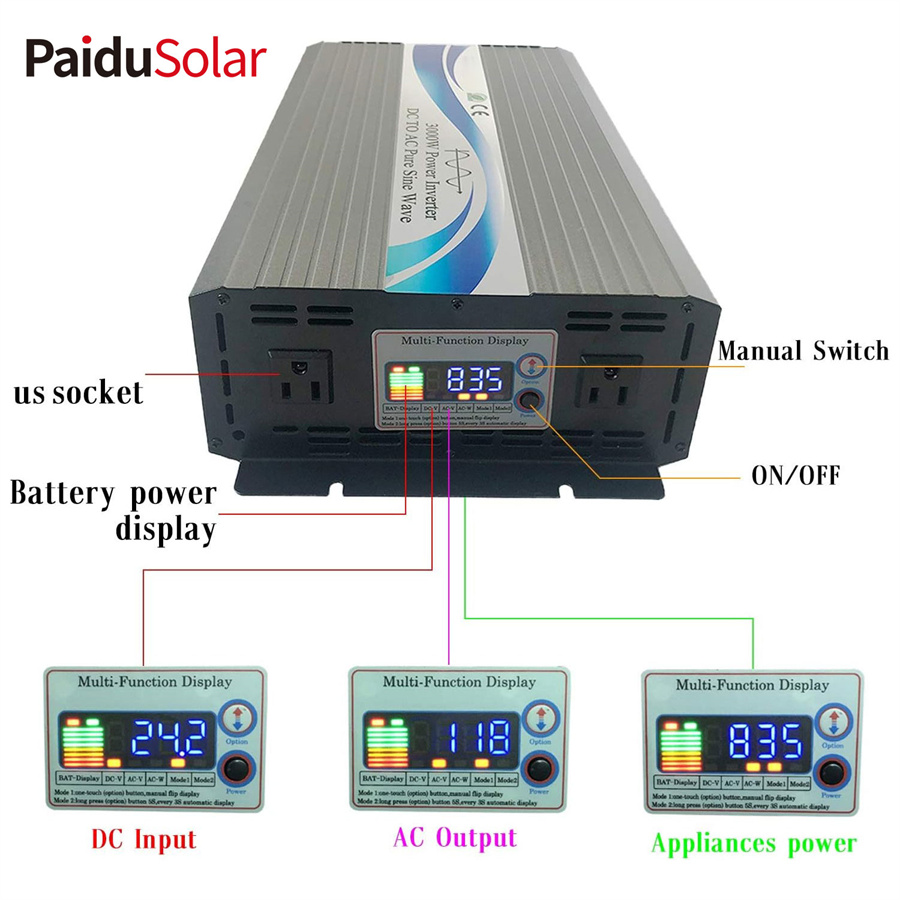

2. Transfer 24VDC to 110V~120VAC, 60Hz frequency, dual US outlets. Intelligent temperature control cooling fan. Earth connection for both PCB board and output. Digital LCD display.
3. High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment. All big imported mosfets with strong driving capacity.
4. Thick PCB, allow the stronger current floating on the circuit, increase the load capacity. High frequency transformer to transfer DC to AC, ensure the stable and full AC output.

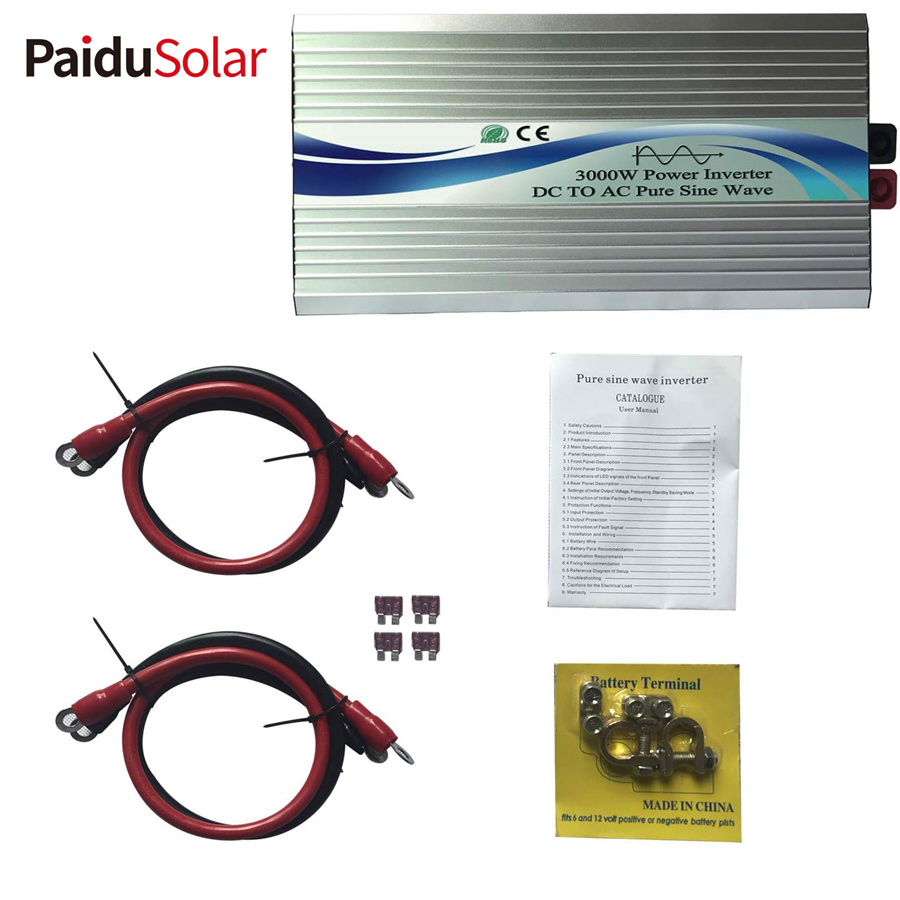

5. Free standard battery cables 55cm length ( 22Inch ) and spare fuse for replacement.
